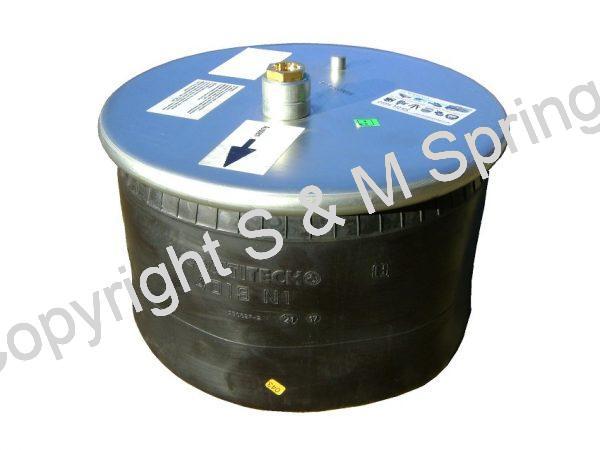

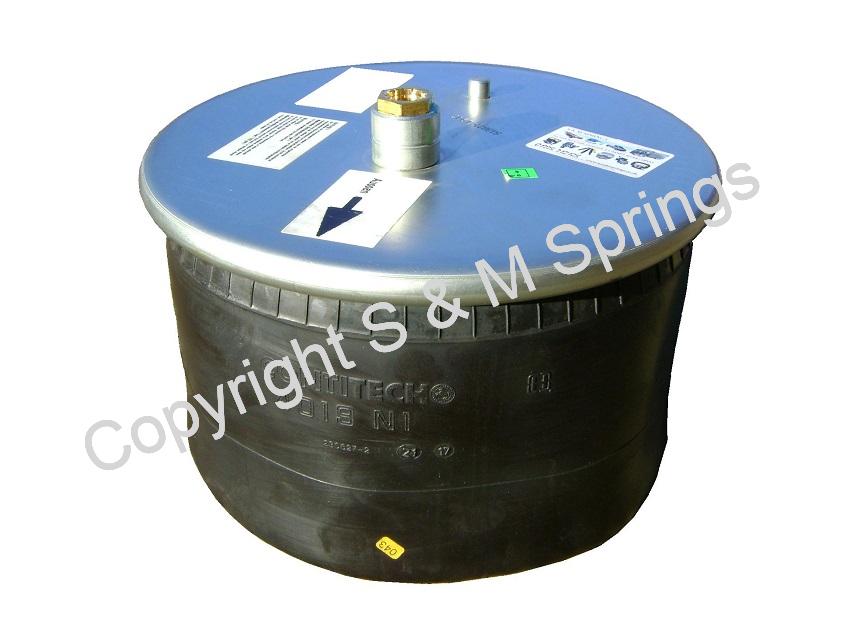

A9603203257 MERCEDES Air Bag – Outer Suspension Bag for Lift Axle
O.E. ref = A9603203257
Description
Suspension Air Bag assembly, for MERCEDES Actros MP4 applications, with an o.e. ref of: A9603203257.
Fits on the outer of the Lift Axle. Need 2 per axle.
Made by Hendrickson, this is a quality, genuine part and is always in stock.
Dims: Top is 280mm across, with peg to air feed locating centres of 100mm.
Bottom fixing via 2 x M12 bolts, 185mm centres. Piston is 230mm across.
We pride ourselves on having been a Hendrickson agent for over 20 years now.
Air Bag with OE refs of: A9423202921 and A9423205021 is in stock.
Mid/Lift Axle Air Bags with OE refs: A96032032547, A9603200957 and A9603200857 are in stock and made by Hendrickson
Leaf Springs, with OE refs of: A9433300011, A9433200001 and A9463501606 for Midlift fitting, are always in stock.
Bonded Midlift Spring Eye Bush, with an OE ref of: A0003330217, is in stock.
Shock Absorbers with OE refs of: A9463260500 and A9463260700 are both stocked.
‘A’ Frame or V-Stay with OE refs of: A9473501005, A9443500005 and A9423501505, is always kept in stock.
Numerous Front and Rear Leaf Springs always in stock, including refs: 0003200102, 9703200702 and 9703200706.
Belt Tensioners, Idler Pulleys and Belts are kept in stock
Front and Rear Brake Pads are available, as well as Front, Middle and Rear Brake Discs
If you need a timed delivery service for this ref: A9603203257 MERCEDES Air Bag, we can help.
Just give us a call. We are here to help! For any more information on this, and any other related products…
