Agricultural Drawbar Spring 11 Leaf 120mm wide – GULL
Description
Agricultural Drawbar Trailer Spring, available in 3 options: 11 Leaf, 13 Leaf & 13 Leaf Heavy Duty (all are 120mm wide).
These popular leaf springs are always in stock & available for same day delivery or next day courier service.
Our refs for Leaf Springs:
- GULL/NEW11P (11 Leaf)
- GULL/NEW13P (13 Leaf) 18 Ton
- GULL/NEW13HD (13 Leaf H/Duty) 21 Ton
Established in 1995, S & M Springs has over 30 years experience in the supply & manufacture of Parabolic and Multi-Leaf Springs for the Commercial, Agricultural, LCV & 4 x 4 markets.
Multi-Leaf in style, these Springs are always available with the relevant U-Bolts, Nuts & Spring Eye Pin.

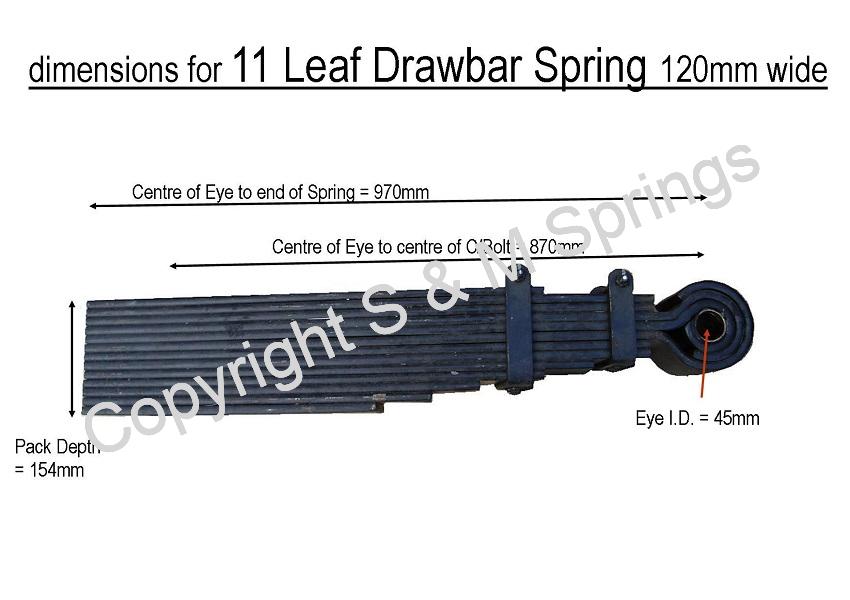

Dimensions for 11 Leaf Spring:
- Width = 120mm
- Centre of Eye to Centre of C/Bolt = 870mm
- Centre of Eye to end of Spring = 970mm
- Pack Depth = 154mm
- Eye I/D = 45mm
- Diameter of C/Bolt Head = M24 x 10mm deep
Dimension for 13 Leaf (18 Ton):
- as 11 Leaf dimensions, except for…
- Pack Depth = 185mm
Dimension for 13 Leaf H/D (21 Ton):
- as 11 Leaf dimensions, except for…
- Pack Depth = 205mm
Also in stock, are 3 & 4 Leaf Parabolic Slipper Ended Agricultural Springs, with one Hook only.
These are suitable for many agricultural trailer applications.
- Dimensions: Length (in a Straight Line) = 1070mm, or around the Camber = 560mm x 560mm
- Depth = 73mm (3 Leaf), 97mm (4 Leaf)
- Width = 75mm
- Centre Bolt Head = 25mm in diameter x 16mm in depth
If you need a timed delivery service for this ref: Agricultural Drawbar Spring 11 Leaf, we can help.
Just give us a call. We are here to help! For any more information on this, and any other related products..
Contact us on:
Telephone: 01775 712125
Email: stuart@sandmsprings.co.uk
Please search our TRAILER section for more great products.
